Analyzing SWTPM Logs with Wireshark

Summary

This article aims to bridge the gap for Trusted Platform Module (TPM) log analysis. SWTPM is a software Trusted Platform Module emulator developed by David Safford and Stefan Berger at IBM. SWTPM logs display hexadecimals bytes sent to and from SWTPM, but no human-readable logs are available. Per the author of SWTPM, users are meant to refer to ioctl definitions and Trusted Computing Group (TCG) paperwork in order to decode the traffic by hand. Wireshark, however, has a high quality TPM traffic decoder. By converting the logs to a PCAP using the open source swtpm-log-to-pcap, it is possible to more easily conduct TPM traffic analysis. This article walks through using the script for logs generated by a Proxmox virtual machine with the SWTPM enabled.

Attached in the top left is an SWTPM log and a PCAP generated using the swtpm-log-to-pcap script, if you wish to skip ahead and see the capability for yourself.

Details

Background

Trusted Platform Modules (TPMs) are hardware root of trust devices that are used in cryptographic operations, often in conjunction with full-disk encryption and secure boot. Articles and resources for TPM traffic analysis are quite sparse, making it difficult to test TPM configurations and validate whether the TPM is behaving correctly.

SWTPM is a software implementation of TPMs. You may be familiar with swtpm if you ever used Proxmox's TPM feature, which wholly relies on SWTPM. SWTPM logs simply dump the hexadecimal bytes of traffic to the TPM and from the TPM, but no decoding or other details are available in the official logs. In this GitHub discussion, the author of SWTPM suggests simply referring to ioctl definitions and TCG paperwork in order to decode the traffic by hand.

Thankfully, Wireshark has a packet dissector for the TPM protocol. All you need to do is use swtpm-log-to-pcap, a small script I published on GitHub, to convert the logs to a PCAP. This script was made possible by Philippe Biondi and community's packet manipulation tool Scapy.

Proxmox Walkthrough

Setting Up a Virtual Machine with TPM Support

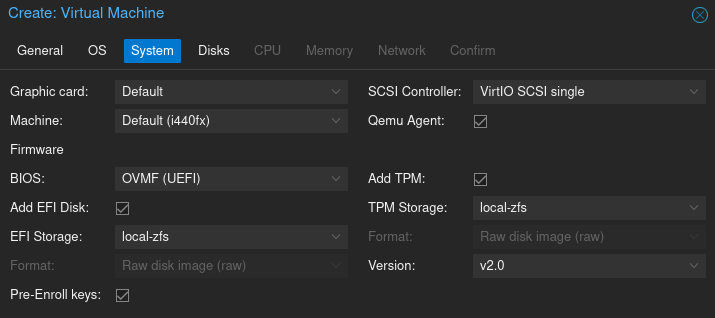

In Proxmox, create a virtual machine with a TPM 2.0 device. The setting is available in the System tab of the Virtual Machine creation menu:

Modifying Proxmox scripts to enable verbose logging

After creating a virtual machine with a TPM attached, we need to modify a Proxmox script to increase SWTPM verbosity.

Modifying Proxmox scripts is not an officially supported action, so a Proxmox update may revert these changes. If you notice that the changes were reverted after an update, simply repeat the steps below.

vim /usr/share/perl5/PVE/QemuServer.pm

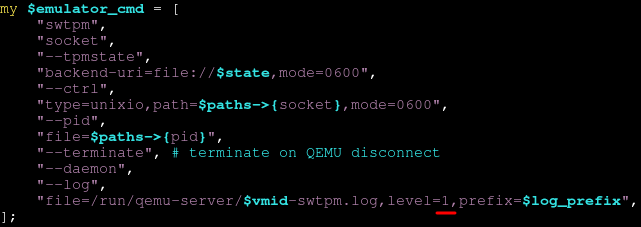

Then, navigate to line 2892 pictured below. Note that depending on your Proxmox version, this line may be elsewhere. All you're looking for is the line that contains the log level and log file location for SWTPM:

"file=/run/qemu-server/$vmid-swtpm.log,level=1,prefix=$log_prefix"

Change the verbosity from 1 to 20, so that the script looks like so:

Per the above script, the SWTPM log will be in /run/qemu-server/$vmid-swtpm.log.

Then, restart the following services for the change to take effect.

Running these commands will cause the web UI to become unresponsive, so doing this over SSH is recommended. If you choose to use the web shell, simply reload the page when it becomes unresponsive after each command.

systemctl restart pveproxy
systemctl restart pvedaemon

In the older Proxmox version 8, the services are instead called pvproxy and pvdaemon, respectively.

Confirm that when launching your VM, your log verbosity is set to 20, by grepping for the virtual machine process:

ps aux | grep swtpm.log,level --color=always

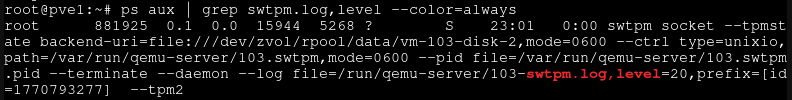

You should see output similar to what's pictured below, confirming that you have log level 20:

Using SWTPM and collecting the logs

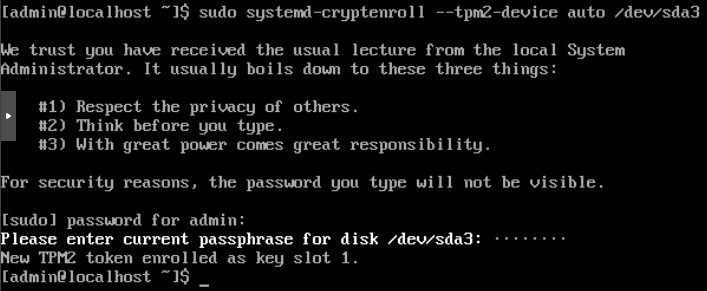

Use your VM and the TPM in your virtual machine. For this example, we'll simply install the virtual machine with LUKS full-disk encryption (FDE), and add the TPM as a disk decryption device. This operation will utilize the TPM and generate some very noisy logs to look at!

The above command introduces a privilege escalation vulnerability wherein an adversary with physical access can drop to a root shell while bypassing full disk encryption. This is a simple example and should not be used in a production setup of TPM-based LUKS FDE automatic unlock.

Export the SWTPM logs from Proxmox via scp or a similar mechanism:

scp root@proxmox.home.local:/run/qemu-server/103-swtpm.log .

Converting the logs to a PCAP

Install swtpm-log-to-pcap:

git clone https://github.com/henryreed/swtpm-log-to-pcap.git
cd swtpm-log-to-pcap
python3 -m venv venv
source venv/bin/activate
pip install -r requirements.txt

Run the script against your log file:

./swtpm-log-to-pcap.py 103-swtpm.log 103-swtpm.pcap

Now, logs like these:

[id=1770793277]  SWTPM_IO_Write: length 546
[id=1770793277]  80 02 00 00 02 22 00 00 00 00 00 00 01 CF 00 9E
[id=1770793277]  B2 7E 86 26 27 C7 6C 95 CE 93 BD 80 E7 B6 23 EB
[id=1770793277]  AF 08 AF 59 03 E8 9B C8 77 7B B7 F7 A2 58 BD D6
[id=1770793277]  0C 7B 4C 3E 39 22 D5 89 5C 32 9D D6 92 30 E2 49
[id=1770793277]  9A 6E 85 A2 E4 F2 F5 8A 51 98 A1 5D C7 D5 DF F0
[id=1770793277]  AC 96 AC 8E DE 43 23 29 9E BA 70 BA 5C 25 5E D2
[id=1770793277]  0A FC D5 CD E2 06 94 BB EE 16 2F D7 3F 6A CC 40
[id=1770793277]  C7 CE 7F 46 9A 95 14 2F 3A 31 A9 15 AB 41 94 A2
[id=1770793277]  1D 1F A7 CB EA 64 D0 4F E8 55 D7 8E 46 BA 99 96
[id=1770793277]  E4 5C 62 6B 7D B0 FC E7 9E D3 71 E2 5A C3 37 5F
[id=1770793277]  9E 80 B6 DB 54 A0 F5 AA 08 38 E8 A0 23 8B 00 4E
[id=1770793277]  00 08 00 0B 00 00 04 12 00 20 C4 21 D4 4F F1 61
[id=1770793277]  55 26 11 49 6F 8C 21 DA 1E 73 34 83 9B 7D AE D8
[id=1770793277]  23 33 95 13 F4 95 29 F3 D7 C7 00 10 00 20 6E 53
[id=1770793277]  E8 FA 5C BC D8 A0 CF 13 68 96 48 95 ED 76 19 7D
[id=1770793277]  78 FF 6A 21 6F 8A B1 87 B5 C1 0C AD 7F 46 00 73
[id=1770793277]  00 00 00 00 00 20 E3 B0 C4 42 98 FC 1C 14 9A FB
[id=1770793277]  F4 C8 99 6F B9 24 27 AE 41 E4 64 9B 93 4C A4 95
[id=1770793277]  99 1B 78 52 B8 55 01 00 0B 00 22 00 0B B6 88 C5
[id=1770793277]  8B E2 54 B5 48 25 72 FD 94 A2 92 2B BF 36 DD AC
[id=1770793277]  5A F8 CD 54 AF 74 0B 72 C4 8A E1 A7 60 00 22 00
[id=1770793277]  0B 03 FD A7 66 85 98 21 54 E1 E0 87 7B 35 84 34
[id=1770793277]  C2 AE DD 31 F0 20 D9 29 9A 70 71 CD 91 C2 C2 FD
[id=1770793277]  D3 00 00 00 20 F9 B4 E1 DA D0 DB A3 6B DA 5B 61
[id=1770793277]  E0 12 3F D1 42 D6 96 37 05 AE 4D 9D EC 9C 09 1B
[id=1770793277]  E8 6C B7 23 E5 80 21 40 00 00 01 00 40 BF F6 BD
[id=1770793277]  B5 67 23 BE 61 85 A3 CF 0B 16 D6 B2 77 94 3C D1
[id=1770793277]  20 AB CD A4 62 C1 58 15 0D A1 AA 3B CF 7C B7 4A
[id=1770793277]  17 5D 02 85 BD 29 94 85 FE 97 D4 B8 43 05 F5 9C
[id=1770793277]  A2 82 68 4F 03 85 70 F8 BC 17 28 AE CC 00 20 70
[id=1770793277]  4B C4 DC 0E AE 34 5A C0 2E FE FA 85 A6 85 FF 02
[id=1770793277]  BB 12 30 CB 9A 24 AD 30 A6 43 29 DA F3 E2 6D 61
[id=1770793277]  00 20 2D 14 5C 03 29 74 97 9F AC FC AB F8 00 EC
[id=1770793277]  BB 6A AB CF A8 AD 3C FD 10 9E 47 0C 5D 08 98 31
[id=1770793277]  49 55
[id=1770793277]  SWTPM_IO_Read: length 14
[id=1770793277]  80 01 00 00 00 0E 00 00 01 62 02 00 00 00
[id=1770793277]  SWTPM_IO_Write: length 414
[id=1770793277]  80 01 00 00 01 9E 00 00 00 00 00 00 00 00 00 00
[id=1770793277]  00 05 02 00 00 00 40 00 00 07 01 82 00 40 65 DE
[id=1770793277]  87 59 4E 80 5A 9B 02 9E A7 5C 1F FF BB 97 DF A4

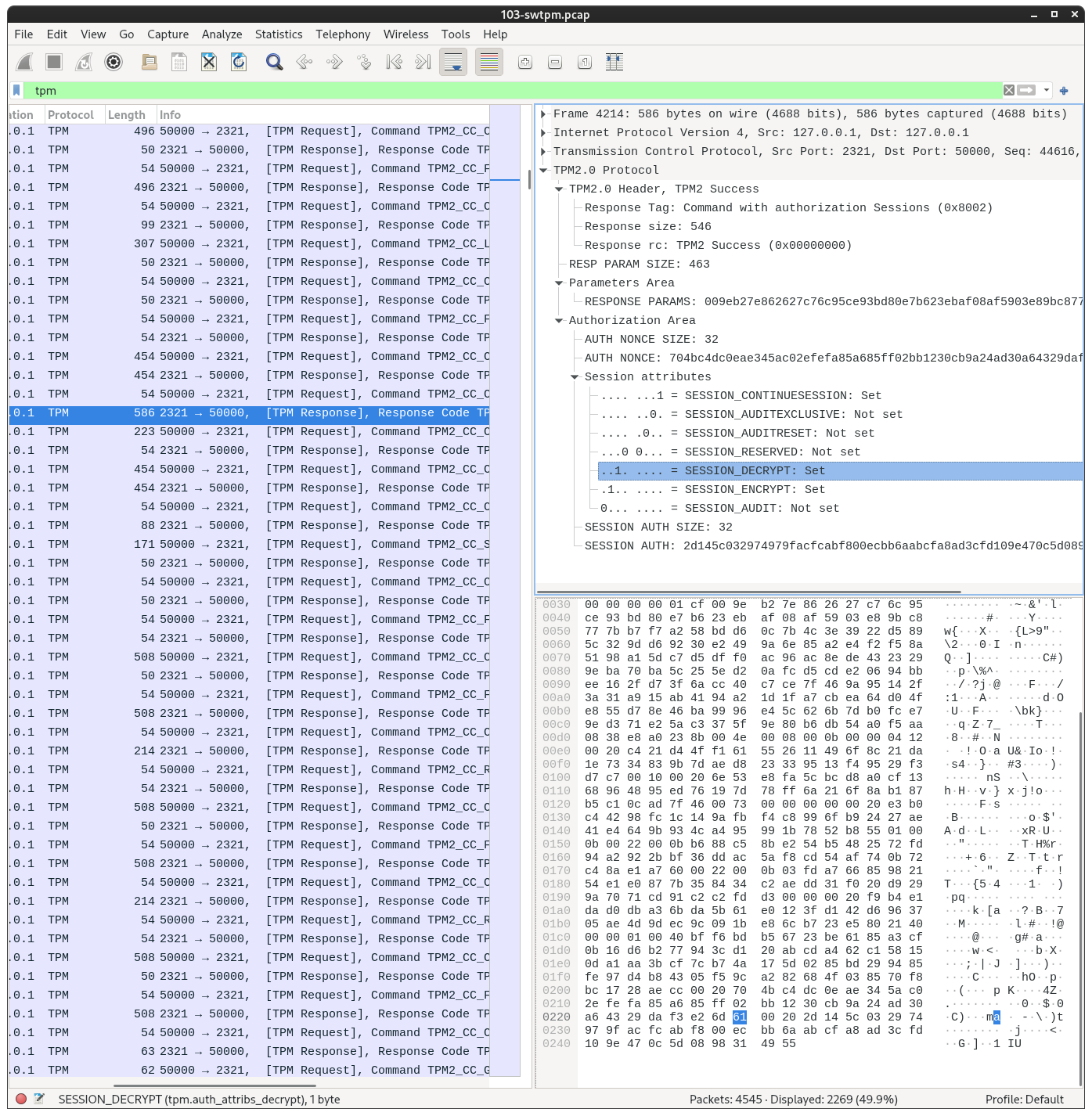

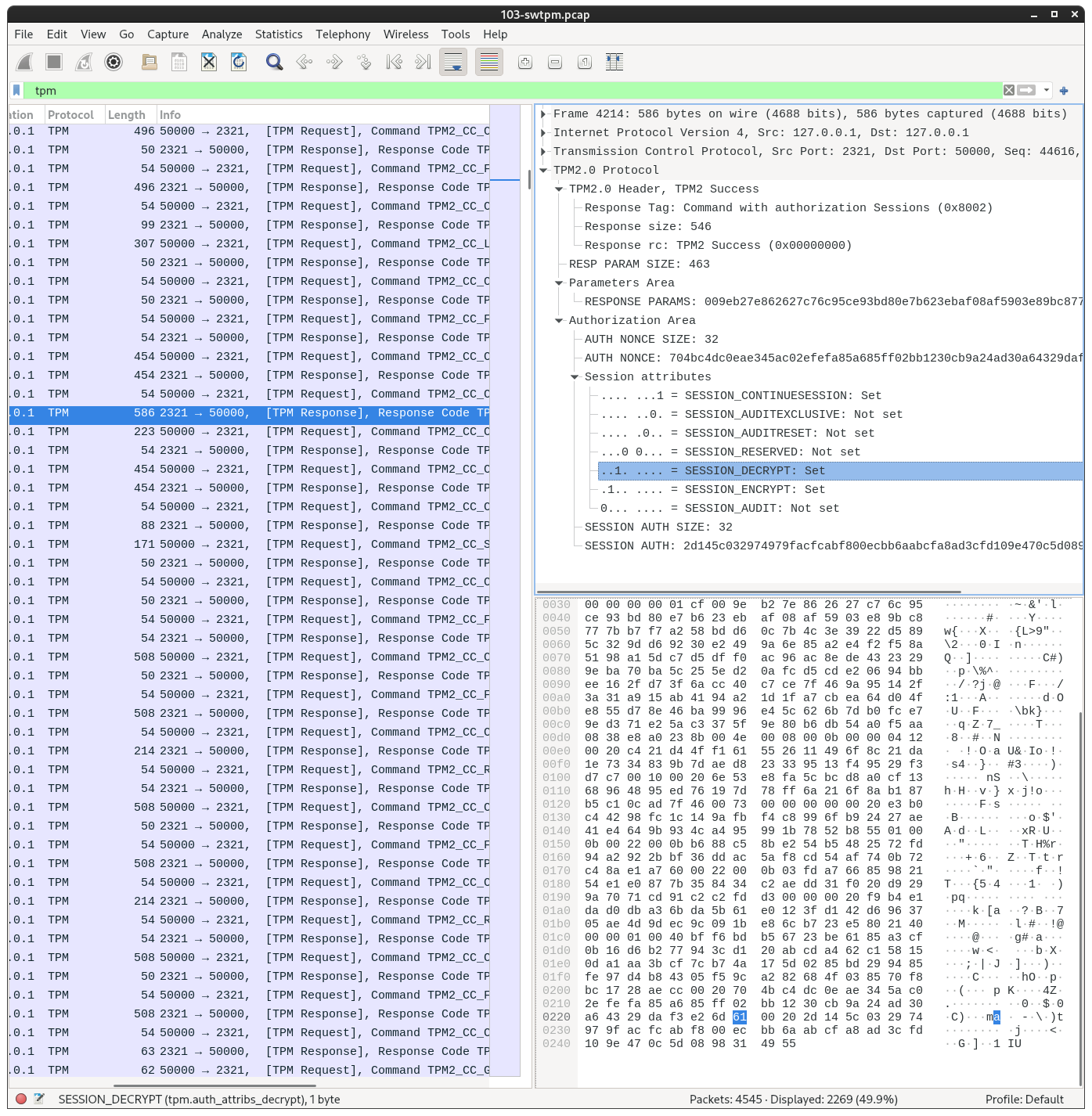

Will be displayed like this in Wireshark:

Conclusion

By leveraging the open source community's tooling, it's possible to rapidly accelerate system security research efforts by developing and using small scripts like swtpm-log-to-pcap. This script allows embedded developers to verify that their tooling is correctly using SWTPM before production deployment, and information security researchers to identify vulnerabilities by inspecting and decoding the TPM traffic. Special thanks to the developers and community contributors of Proxmox, SWTPM, Scapy, and Wireshark!
